SHIPPING LATE 2025

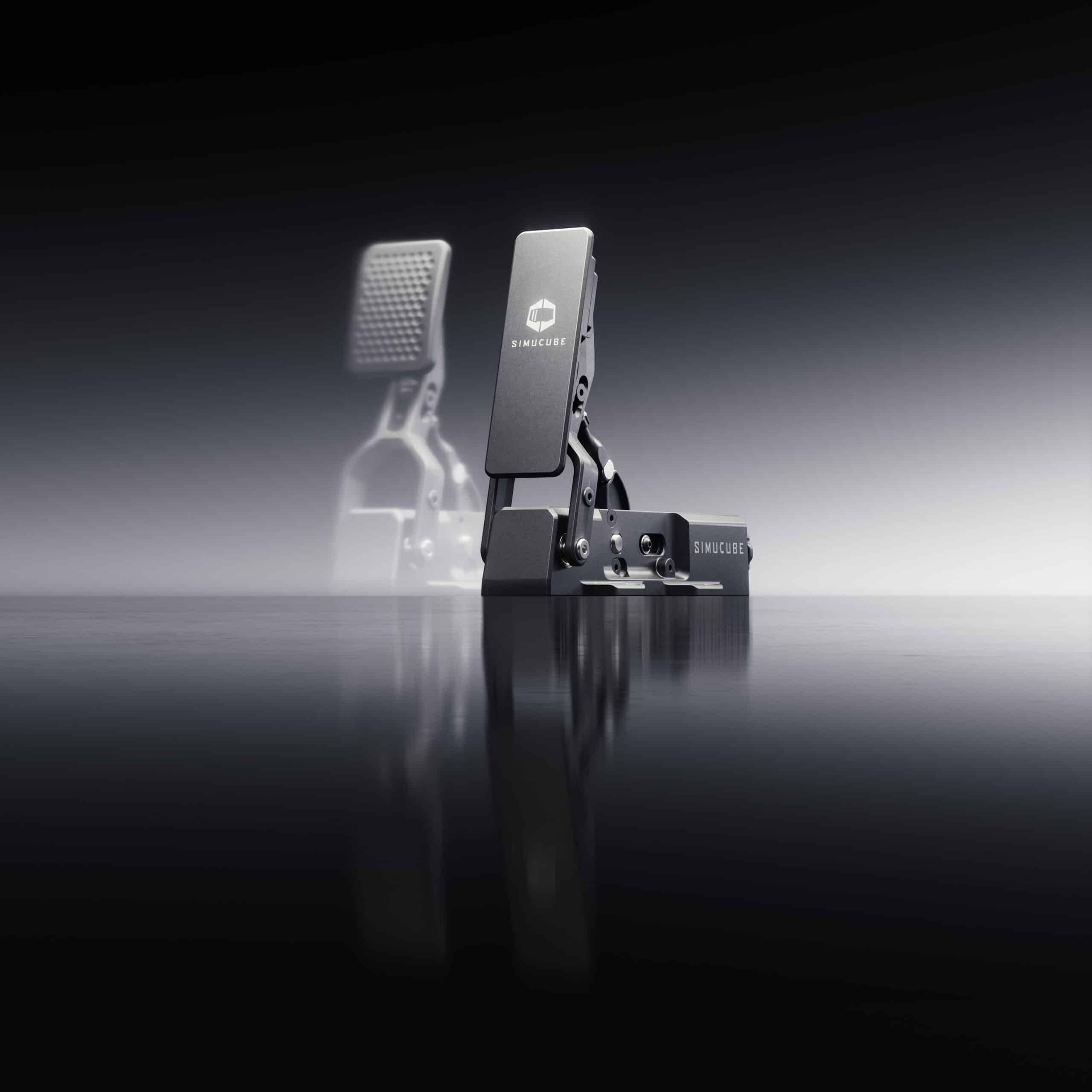

Simucube Co-Pedal
€354.62 (incl 19% VAT)
SIGN UP TO GET NOTIFIED WHEN ITS SHIPPING
watch video
Learn all about Co-Pedal
NEXT GEN PASSIVE PEDAL: THROTTLE OR CLUTCH
2-in-1 Throttle and Clutch
Can be easily assembled into a throttle or clutch
THROTTLE MODE
Co-Pedal Throttle
- Smooth throttle feel with patented mechanics
- Consistent hall angle sensor feedback
- Meant to be combined with ActivePedal
- Adjustable travel and preload for full control
- 3 years warranty
CLUTCH MODE
Co-Pedal Clutch
- Realistic bite point feel
- Inverted mounting
- Meant to be combined with ActivePedal
- Easily swappable to clutch configuration
- 3 years warranty
simucube co-pedal
Patent pending Arc technology
At the heart of Simucube Co-Pedal lies our Arc technology. This patented modular system allows you to physically transform the pedal’s function with an innovative Arc profile. Featuring a robust frame construction that eliminates flex, paired with an Arc profile, which provides a crisp mechanical and immediate feel of the wanted profile. The Arc profiles provided by Simucube have been manufactured with ultra precision and are built to last, as is the pedal itself.
What is Arc Technology?
A patent-pending modular system that physically transforms your pedal's function. Swap between throttle and clutch in 60 seconds.

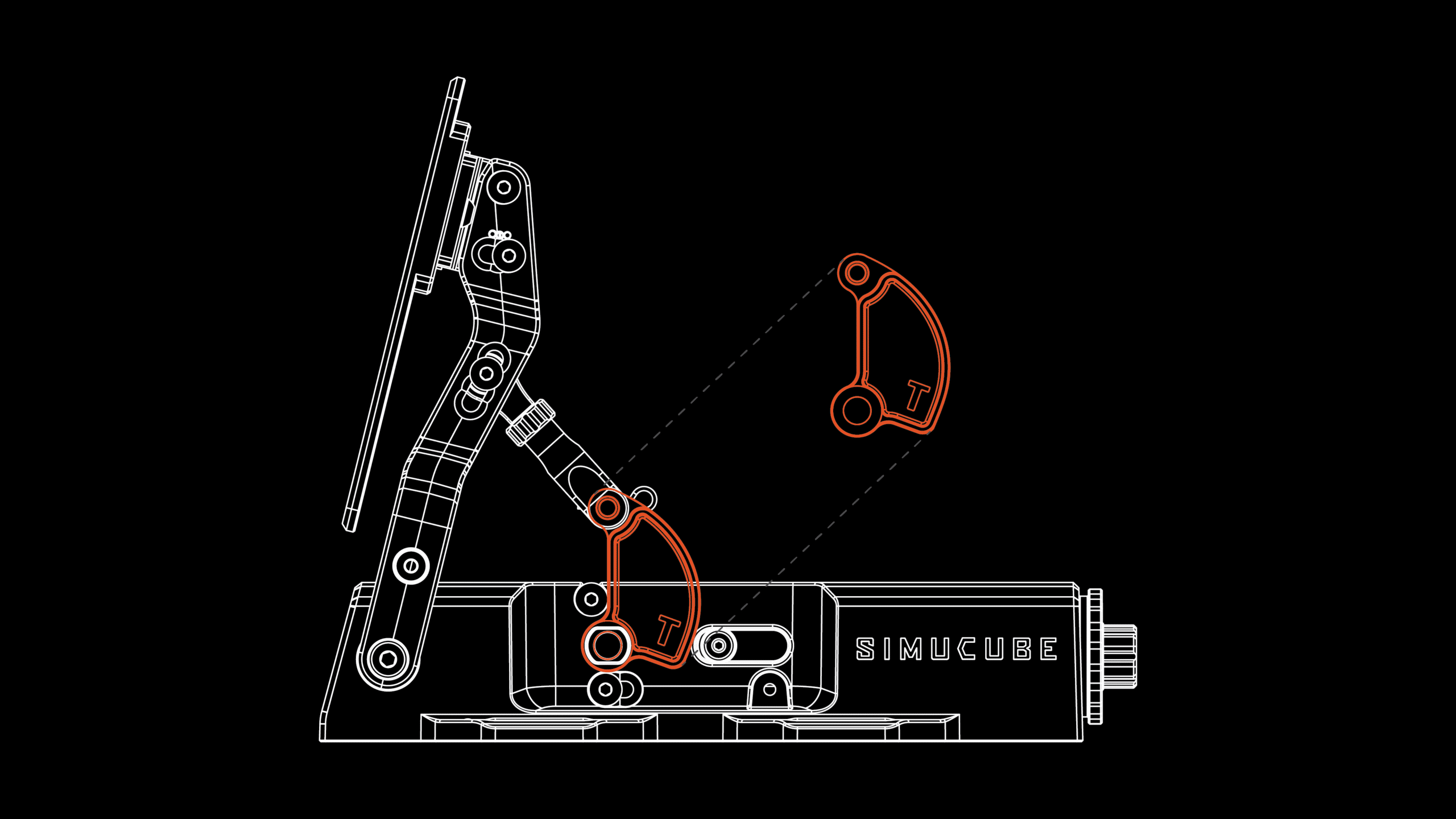

Throttle configuration
The linear Arc piece provides smooth, progressive throttle control. Perfect for precise acceleration.
- Progressive spring tension curve
- Smooth linear response
- Adjustable travel distance

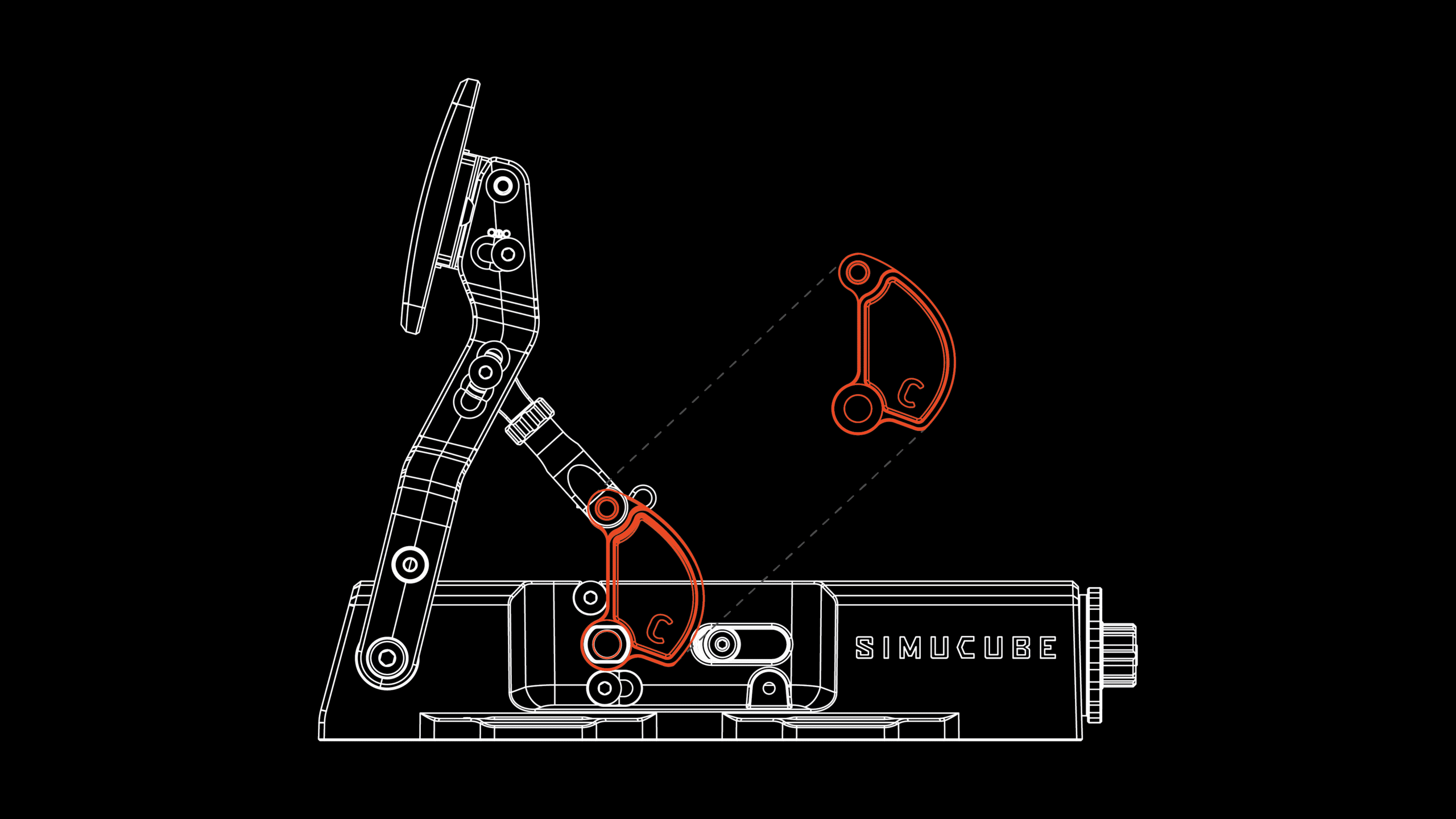

Clutch configuration
The engagement Arc piece delivers authentic clutch feel with distinct bite point.
- Realistic engagement point
- Heavy-duty spring system
- Professional-grade durability
HALL ANGLE SENSOR
Inspired by motorsport drive-by-wire systems
Simucube Co-Pedal utilizes a hall angle sensor for position measurement, mirroring throttle and clutch pedals in high-end race cars. Unlike traditional load cell-based systems that measure force, this design focuses on precisely measuring the angle of the pedal, providing a more accurate and consistent experience. This eliminates dead zones and ensures consistent sensor feedback across the entire pedal travel.
ADJUSTABILITY
Find the perfect angles
- Adjusts preload
- Adjusts travel length
- Adjusts the length of the stem
4. Adjusts the angle of the pedal
5. Adjusts the angle of the pedal face
6. Adjusts pedal face height
simucube co-pedal
Meant to be combined with ActivePedal
The Co-Pedal seamlessly integrates with ActivePedal Pro and Ultimate, giving you the ultimate sim racing pedal setup.
"The Co-Pedal's Arc Technology gives us the flexibility we need. One pedal that performs flawlessly as both throttle and clutch—that's innovation."
Team Redline
Frequently asked questions
- Adjustable travel: 30 mm – 50 mm – 70 mm
- Max. force as Throttle (at 100% pre-load and 70 mm travel): 11 kg (approx. 110 N)
- Max. force as Clutch (at 100% pre-load and 70 mm travel): 25 kg (approx. 250 N)
- Preload range: 0 mm - 13 mm (approx. 0-5 kg)
- Dimensions: H x W x L: 242 mm x 83 mm x 308 mm (as Throttle)
- Weight: 1,6 kg (same for Throttle and Clutch)
Simucube Co-Pedal will be priced at 352.62€ (19% VAT). Prices will vary depending on VAT.
If you want a throttle AND a clutch, you need to purchase two Simucube Co-Pedals.
Simucube Co-Pedal is available for purchase and shipping in late 2025
3 years.
